Поделиться16812025-08-18 13:07:06
- Администратор
- Сообщений: 1513
- Уважение: +63
Поделиться16822025-08-18 21:49:05
BIOS написал(а):
Спасибо. Если подключить чип к системе через USB с помощью USB_PC_EN, нужно ли, чтобы на обеих сторонах был чип JL? Например, чтобы чип передатчик был master, а чип приёмник — slave?
Отредактировано Solara (2025-08-18 21:52:05)
Поделиться16832025-08-24 03:26:21
Hello! Is there a way to add ID3 tag decoding to the firmware? Like the artist, title, album.
And Bluetooth connected device name and song/artist over AVRCP?
Поделиться16842025-08-24 03:49:44
Also, is there an U8g2 port?
Поделиться16852025-08-25 00:45:44
- Администратор
- Сообщений: 1513
- Уважение: +63
duccquackk написал(а):
Hello! Is there a way to add ID3 tag decoding to the firmware? Like the artist, title, album.
And Bluetooth connected device name and song/artist over AVRCP?
Hi. What chip series You use? We not tested it) ANd i saw that only in 695x sdk. But not realised..
- Подпись автора
USMicro(R) (C)2025
Поделиться16862025-08-25 14:31:11
692X. I've seen devices that do this. I saw a radio that was using AC6921 and displaying the song name and phone name over Bluetooth.
And some car radios based on JieLi have ID3 decoder.
Поделиться16872025-08-26 03:52:53
BIOS написал(а):
Hi. What chip series You use? We not tested it) ANd i saw that only in 695x sdk. But not realised..
In fact, it has already been released. Most SDKs can only be obtained through JL FAE, and the same goes for the documentation, which is usually presented in the form of online documents (Kingsoft Docs). If you need it, I can provide you with all the documentation for JL7014F5.
Поделиться16882025-08-26 04:00:25
BIOS написал(а):
Hi. What chip series You use? We not tested it) ANd i saw that only in 695x sdk. But not realised..
Personally, I feel that Jieli's SDK is really terrible, and the documentation is a complete mess.
Поделиться16892025-08-26 04:19:55
I need to reply multiple times to see it. Will posting invalid replies get me banned?
Поделиться16902025-08-26 15:35:45
shiinakaze написал(а):
Personally, I feel that Jieli's SDK is really terrible, and the documentation is a complete mess.
I like the MVSillicon one. Especially because of ACPWorkbench. You can use it to make a DSP.
But there is no compiler and downloader discovered for MV, so I use JieLi.
Отредактировано duccquackk (2025-08-26 15:37:46)
Поделиться16912025-08-27 02:38:12
- Администратор
- Сообщений: 1513
- Уважение: +63
duccquackk написал(а):
I like the MVSillicon one. Especially because of ACPWorkbench. You can use it to make a DSP.
But there is no compiler and downloader discovered for MV, so I use JieLi.
Soundbar BS-18 hdmi

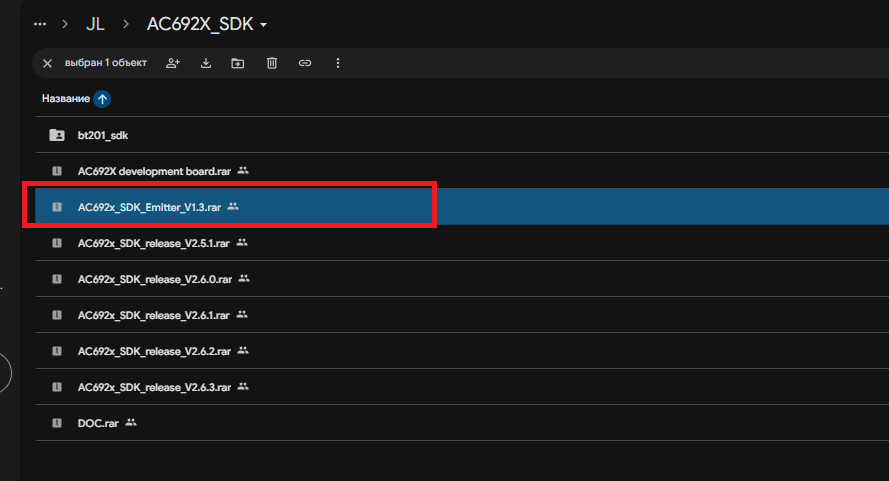

Here all. license and etc. SDK can found on github. Or i can provide it.
- Подпись автора
USMicro(R) (C)2025
Поделиться16922025-08-27 04:00:39
BIOS написал(а):
Soundbar BS-18 hdmi
Here all. license and etc. SDK can found on github. Or i can provide it.
You may need the latest SDK. The main issue with Jieli is the messy software architecture—it would be great if someone could refactor the SDK.
通过网盘分享的文件：JL701n_watch_release_v3.0.2.zip
链接: https://pan.baidu.com/s/1_kId-coB6o8TTt … Q?pwd=2748 提取码: 2748
Поделиться16932025-08-27 04:03:20
The only AC/JL701N user manual (in Chinese)
Поделиться16942025-08-28 02:48:51
- Администратор
- Сообщений: 1513
- Уважение: +63
shiinakaze

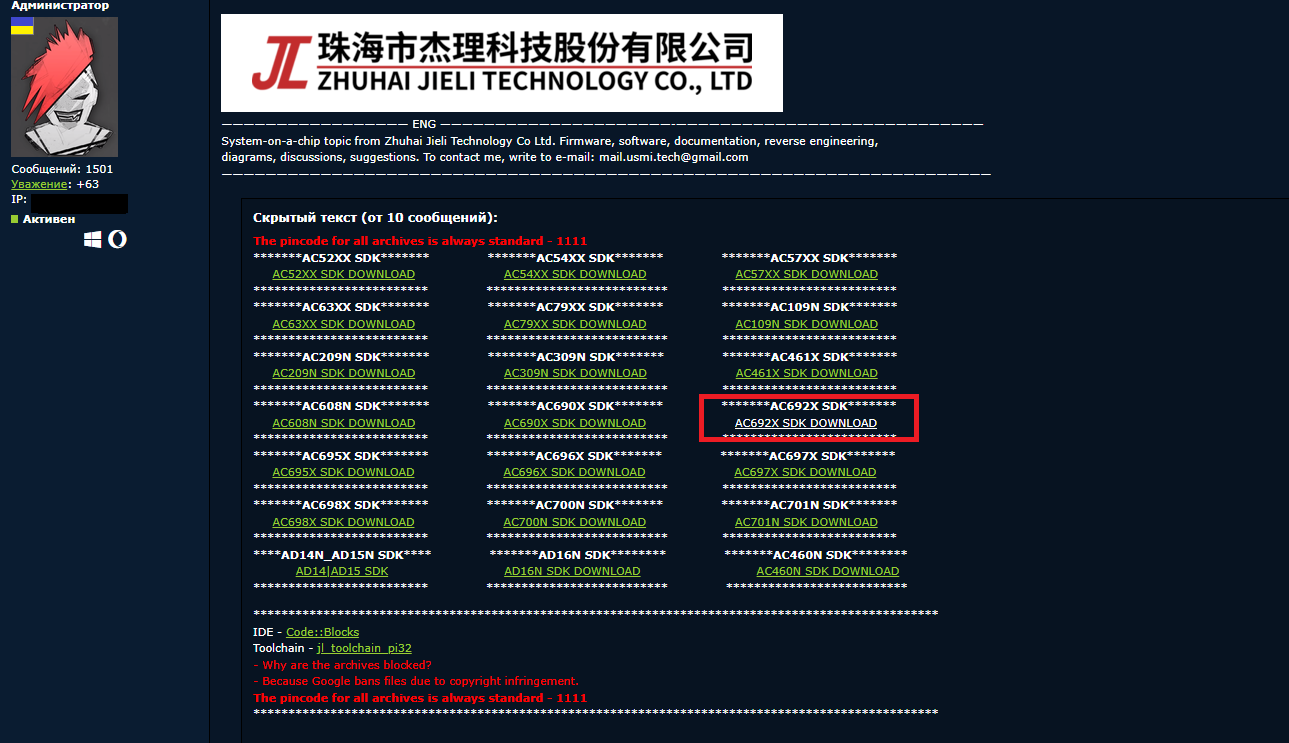

Wow! Cool, thanks for Watch SDK. That fresh 2025 relese. With all doc, and lib sdk project... I add that to all SDK i that topics, u can get any SDK for JL in firs page.
shiinakaze написал(а):
I need to reply multiple times to see it. Will posting invalid replies get me banned?
You mean SDK lib in 1st page?
If u posting spam -yes. Just post something normal> ask/show/say cool info.
shiinakaze написал(а):
The only AC/JL701N user manual (in Chinese)
Thanks for that!
shiinakaze написал(а):
In fact, it has already been released. Most SDKs can only be obtained through JL FAE, and the same goes for the documentation, which is usually presented in the form of online documents (Kingsoft Docs). If you need it, I can provide you with all the documentation for JL7014F5.
What that JL FAE?
I found all in csdn/another web, or it provide some company. (JL agents).
I have little experience with JL701X. And that cool series, and that not so harder than AC695x sdk, same structure, Yes, afther 692 its more harder. But take little time for learning, and readinf users manuals, and get succsess!
- Подпись автора
USMicro(R) (C)2025
Поделиться16952025-08-28 02:54:44
- Администратор
- Сообщений: 1513
- Уважение: +63

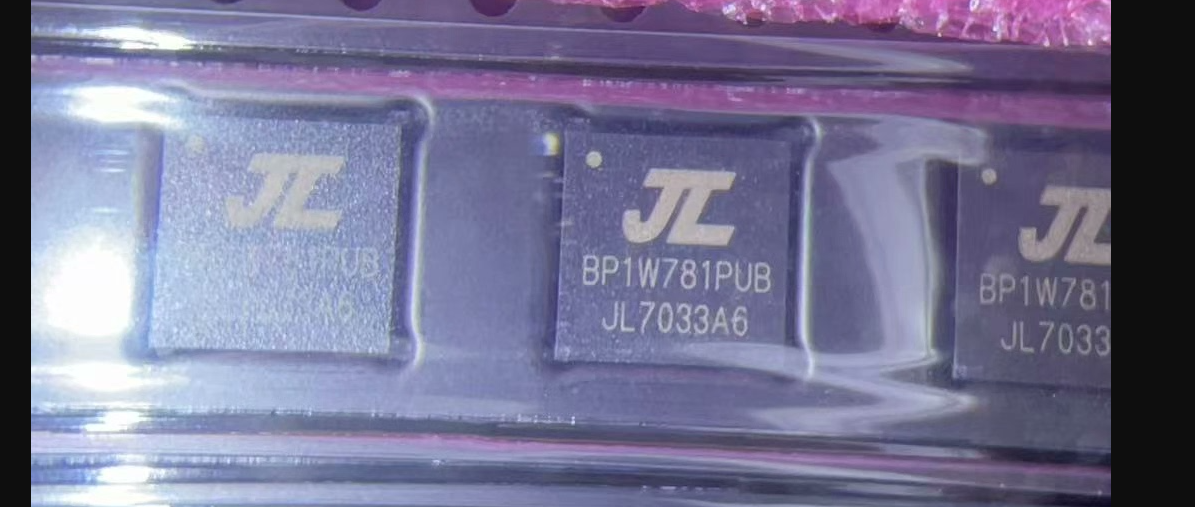

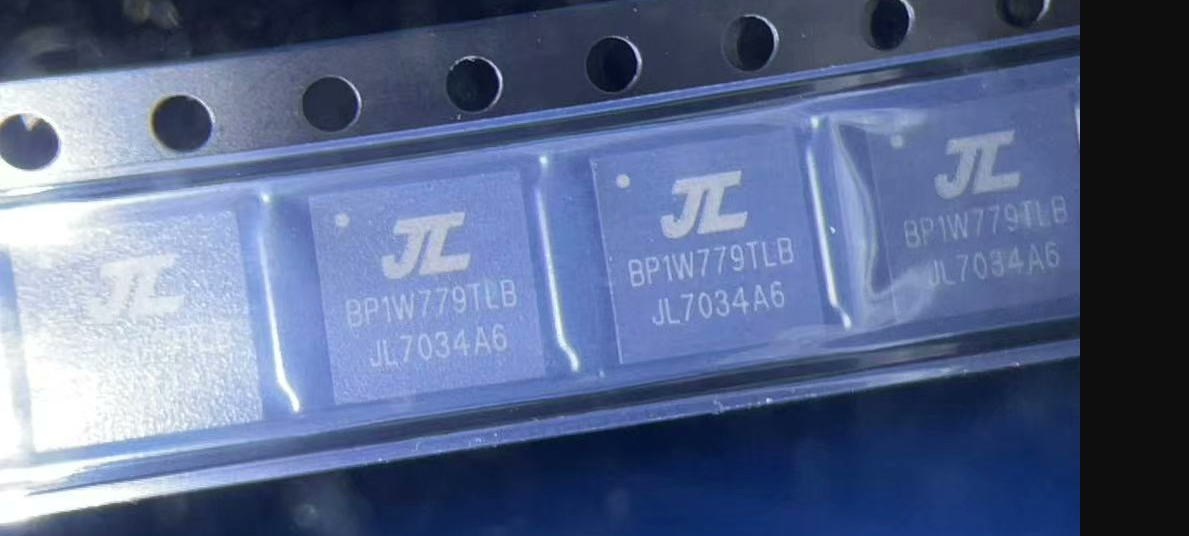

Do You know something about JL703 series? I try found SDK. Actuality i have chips and pdf. But not sdks. And that chips look more powerful than 701x.
- Подпись автора
USMicro(R) (C)2025
Поделиться16962025-08-28 03:42:06
BIOS написал(а):
What that JL FAE? I found all in csdn/another web, or it provide some company. (JL agents). I have little experience with JL701X. And that cool series, and that not so harder than AC695x sdk, same structure, Yes, afther 692 its more harder. But take little time for learning, and readinf users manuals, and get succsess!
Jerry generally communicates directly only with large manufacturers, while other small companies are handled by first-tier agents. Jerry has now developed a tool called JL Studio for managing and configuring the SDK. If you can contact an agent, they will help you apply for an account to gain access.
I don't have the AC703 materials at the moment, but I still have the JL701N sound box SDK. I'm trying to figure out their file system, Flash access, UI framework, and VFS implementation. Since they're all encapsulated in static libraries, it's quite confusing to me.
Поделиться16972025-08-28 11:27:36
Добрый день!
Попалось устройство на AC7066A.
Есть два вопроса:
1) Скажите пожалуйста, нет ни у кого случайно SDK для данного AC7066A ?
2) Можно ли подружить AC7066A с AC6966B4 по TWS ?
Поделиться16982025-09-03 09:54:07
Добрый день! простите за глупый вопрос начинающего, снял ДАМП с колонки HOPESTAR PARTY ONE 80w. она на чипе AC6921A
проблема в нерегулируемом (ужасном) эхе в Микрофонах (радио). по схеме вроде эхо делает чип.
если ли возможность сделать доработанную прошивку как минимум уменьшить эхо, как максимум добавить возможность регулировки эха через комбинацию существующих кнопок.
